One board.
Many capabilities.

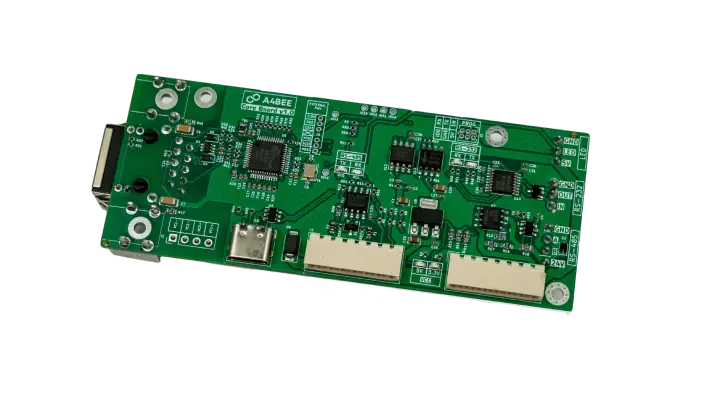

The CoreBoard® is a versatile embedded module built around the powerful ESP32 platform.
It serves as a robust foundation for various IoT and industrial applications, offering seamless data exchange capabilities and extensive connectivity options.


With its comprehensive feature set and flexible design, the CoreBoard® empowers developers to create innovative solutions for monitoring, control, and automation in diverse environments.


Whether deployed in industrial settings or IoT deployments, this module delivers reliability, performance, and scalability for a wide range of applications.

01

BENEFITS

  1. Multiprotocol data exchange

    Seamlessly exchange data using industry-standard protocols, facilitating interoperability and integration.

  2. Versatile connectivity

    Stay connected via Ethernet, WiFi, or Bluetooth, adapting to various networking requirements.

  3. Streamlined integration

    Easily integrate with existing industrial setups using serial communication interfaces.

02

FEATURES

  • Data exchange

    Supports Modbus RTU,
    OPC UA, MQTT protocols
    and Modular Type Package
    (MTP), providing a framework
    for standardized equipment
    data models and
    description language.

  • Connectivity

    Equipped with Ethernet,
    WiFi, and Bluetooth
    interfaces, ensuring
    reliable connectivity
    in diverse environments.

  • RS-485 (Modbus RTU)
    and RS-232

    Facilitates serial communication
    for integration with
    industrial equipment.

  • Addressable LED interface

    Allows for control and
    management of addressable
    LEDs to provide visual
    feedback and status indication.

  • Power output connector

    Dedicated 24V output allows
    to power an external device.
    It is capable of current
    measurement, connection
    detection on output port
    and can be disabled or
    enabled from software.

  • RTC (Real-Time Clock)

    Allows for accurate
    timekeeping even during
    network and/or power
    outage.

  • Thermometer

    Built-in temperature sensor
    for environmental monitoring.

  • Passive Power
    over Ethernet (PoE)

    Enables convenient powering,
    and if it is unavailable,
    5V delivered via USB connection
    suffices.

  • Standardized 7-pin connectors

    Equipped with two
    standardized 7-pin
    connectors mounted, allowing
    for easy connection
    with other modules
    in the system.

03

APPLICATION SCENARIOS

  1. Industrial automation

    Facilitates communication with PLCs,
    sensors, and actuators via Modbus RTU
    over RS-485 and RS-232.
    The CoreBoard®'s support for addressable
    LED handling enhances visual feedback
    for industrial process monitoring
    and control.

  2. IoT deployment

    Enables seamless data exchange
    and connectivity for IoT devices, supporting
    MQTT and OPC UA protocols.
    The built-in RTC ensures accurate
    timestamping for data logging applications.

  3. External device integration

    With its 24V output, controllable power
    supply, and current measurement functionality,
    the CoreBoard® serves as a reliable platform
    for integrating and powering external
    devices in various settings.
